FedEx Integration Guide

Connect FTM’s Transportation Management System (TMS) with FedEx Freight APIs to request real-time LTL rate quotes, including Economy and Priority services.

Overview

The FedEx Freight integration enables FTM users to obtain live rate quotes and transit times directly from FedEx Freight.
Each Lane Quote record can retrieve:

Accurate Freight charges (Net Charge)
Estimated Transit Days
Service Type (Economy or Priority)

This integration consists of two Apex controllers:

FedexEconomyInteg → For FEDEX_FREIGHT_ECONOMY quotes
FedexPriorityInteg → For FEDEX_FREIGHT_PRIORITY quotes

Both controllers build, authenticate, and send JSON-based API requests to FedEx, parse the returned rate information, and display the results in Salesforce.

1️⃣ User Information

Purpose

The integration helps users:

Instantly get Economy and Priority rate quotes within the Lane Quote page.
Retrieve estimated transit days and total net charge directly from FedEx.
Avoid manual rate entry or website lookups.

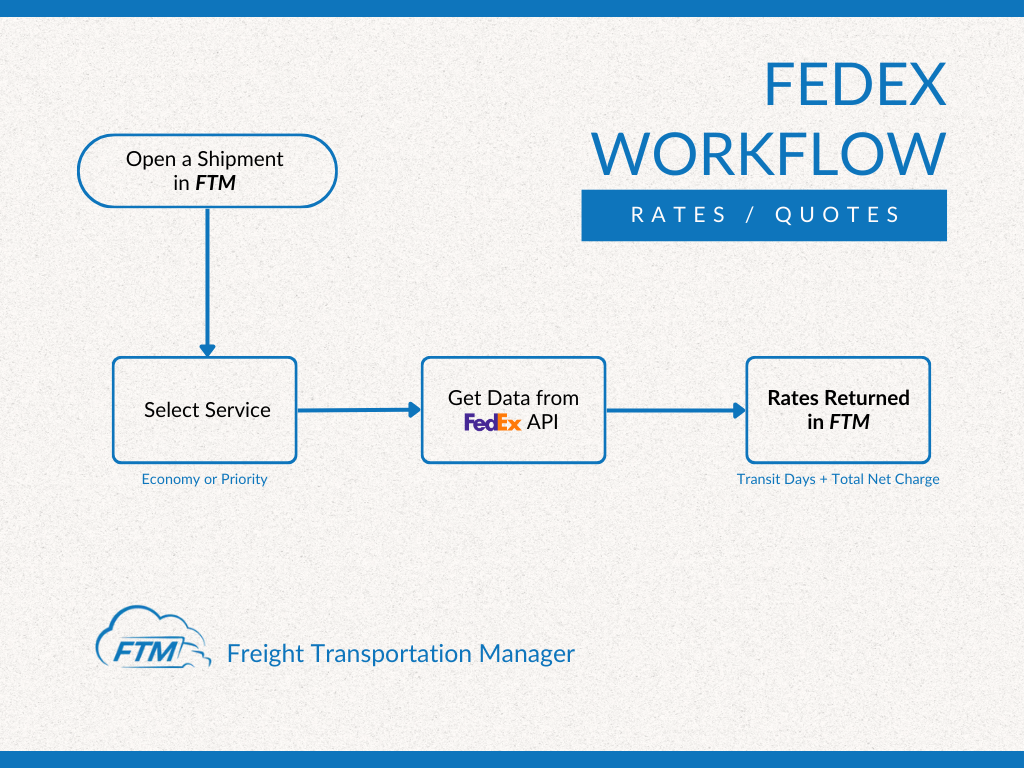

How It Works (User Perspective)

Open any Lane Quote record in FTM.
Choose between Economy or Priority quote options.
Click the “Get Data” button on the Visualforce page:
- For Economy: runs FedexEconomyInteg.getData()
- For Priority: runs FedexPriorityInteg.getData()
FTM sends your lane’s details (pickup, delivery, freight class, weight, packaging, dimensions, payment type) to FedEx via API.
Within seconds, the Total Net FedEx Charge and Transit Days are displayed.
Optional: store these values into the Lane Quote for comparison and decision-making.

Key Features

✅ Supports both Economy and Priority Freight services
✅ Fetches real-time rates from FedEx API
✅ Displays Transit Days and Charges directly in Salesforce
✅ Uses secure OAuth2 authentication
✅ Fully configurable via FTM’s standard Lane Quote fields
✅ Compatible with sandbox and production environments

Important Notes

⚠️ U.S. and Canada addresses only (FedEx Freight service limitation)
⚠️ Requires a valid FedEx Freight Account Number (stored under User fields)
⚠️ No booking is performed, rate quote only
⚠️ Internet-accessible Salesforce org required (for API callouts)

Prerequisites

To use this integration:

Ensure your User record has these populated:
- FEDEX_AccountNumber__c
- alternateBillingParty_FedExaccountNumber__c
Ensure your Lane Quote record has valid:
- Pickup & Delivery Address (City, State, Zip, Country)
- Freight Class
- Weight & Dimensions
- Handling Units, Pieces, Sub-Packaging Type
- Payment Type (e.g. “SENDER”, “THIRD_PARTY”)
Verify you have access to the Visualforce pages connected to each integration.

Fields Used

Object	Field	Description
FreightTM__Lane_Quote__c	FreightTM__Pickup_City__c	Origin City
FreightTM__Lane_Quote__c	FreightTM__Delivery_City__c	Destination City
FreightTM__Lane_Quote__c	FreightTM__Pickup_Zip_Code__c	Origin Zip
FreightTM__Lane_Quote__c	FreightTM__Delivery_Zip_Code__c	Destination Zip
FreightTM__Lane_Quote__c	Freight_Class__c	Freight Class Code
FreightTM__Lane_Quote__c	Weight_Value__c	Weight Value
FreightTM__Lane_Quote__c	weight_unit__c	Weight Unit (e.g., LB)
FreightTM__Lane_Quote__c	Pieces__c	Number of Pieces
FreightTM__Lane_Quote__c	Handling_Units__c	Handling Units Count
FreightTM__Lane_Quote__c	Sub_Packaging_Type__c	Packaging Type (PALLET, BOX, etc.)
FreightTM__Lane_Quote__c	FEDEX_PaymentType__c	Payment Type
FreightTM__Lane_Quote__c	Role__c	Role (SHIPPER / CONSIGNEE)
FreightTM__Lane_Quote__c	Rate_Request_Type__c	ACCOUNT / LIST
FreightTM__Lane_Quote__c	length__c, width__c, height__c, Saia_Type__c	Dimensions & Units

2️ Developer Information

Apex Classes

FedexEconomyInteg
FedexPriorityInteg

Each controller:

Extends ApexPages.StandardController
Fetches data for the current Lane Quote (quoteId)
Builds request JSON dynamically using Lane Quote and User fields
Performs two-step authentication:
1. POST /oauth/token → get Bearer Token
2. POST /rate/v1/freight/rates/quotes → send quote request
Parses totalNetFedExCharge and transitDays from response

Endpoints

Purpose	Method	URL
OAuth Token	POST	https://apis.fedex.com/oauth/token
Freight Rate Quote	POST	https://apis.fedex.com/rate/v1/freight/rates/quotes

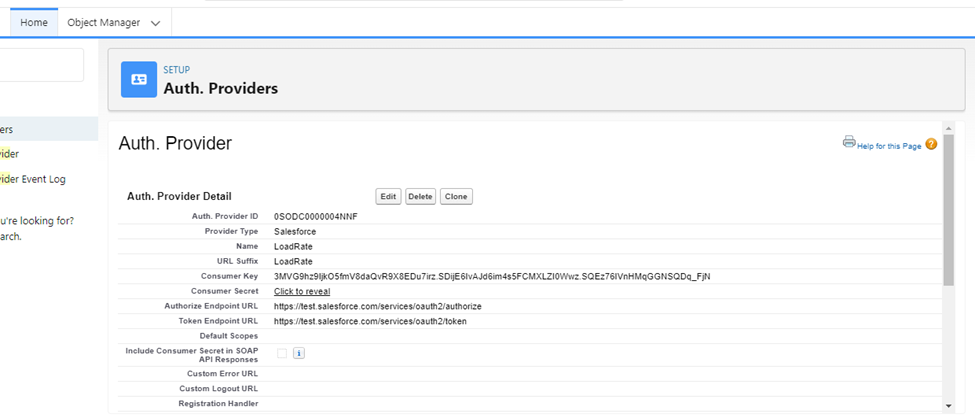

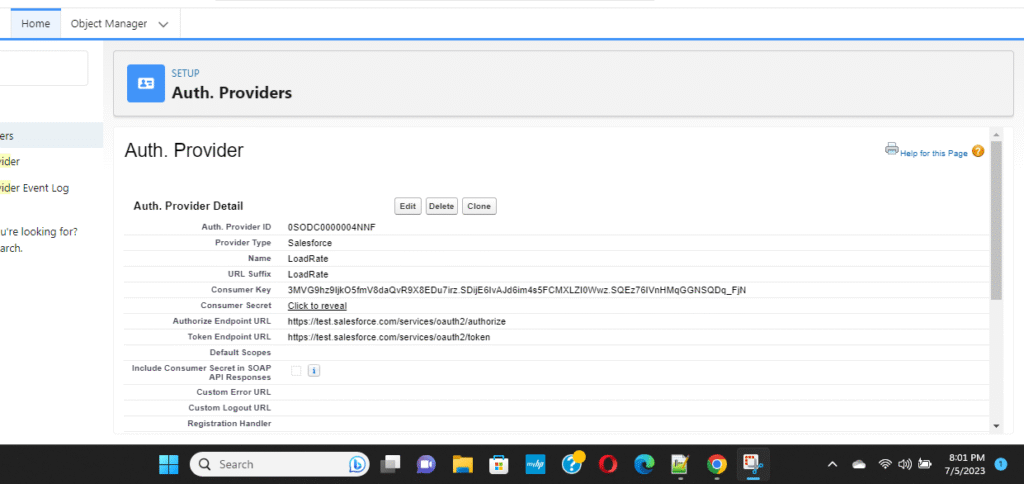

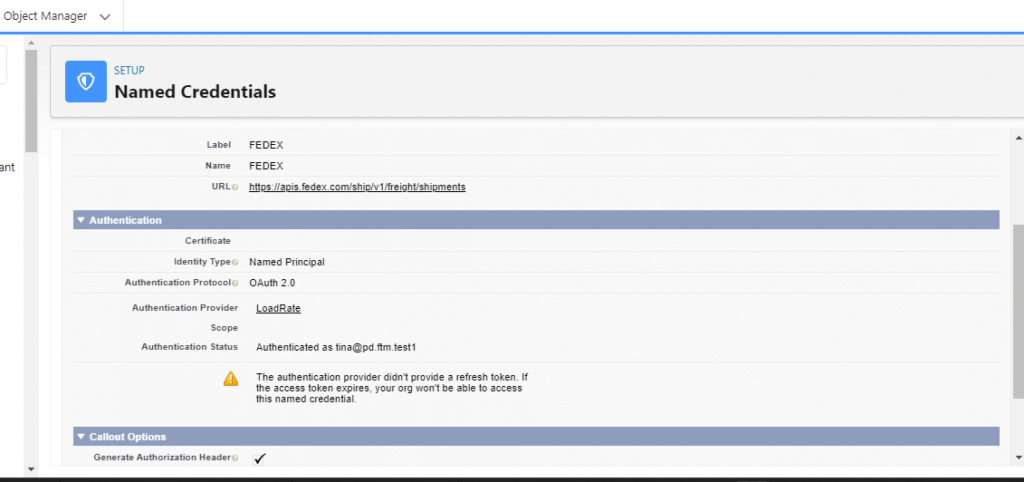

Authentication (OAuth 2.0)

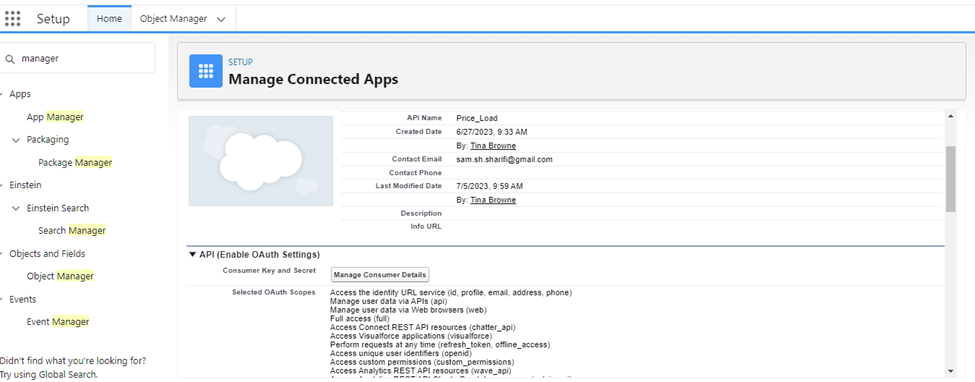

Create a FedEx Developer account and register your app.
Obtain:
- CLIENT_ID
- CLIENT_SECRET
- GRANT_TYPE = client_credentials
Store them in a static resource named CredFed as JSON:

{
  "CLIENT_ID": "your_client_id_here",
  "CLIENT_SECRET": "your_secret_here",
  "GRANT_TYPE": "client_credentials"
}

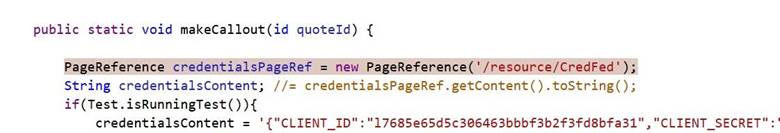

4. The Apex code reads it using:

PageReference credentialsPageRef = new PageReference('/resource/CredFed');
String credentialsContent = credentialsPageRef.getContent().toString();

API Request Structure

Endpoint:

POST https://apis.fedex.com/rate/v1/freight/rates/quotes

Body Example (simplified):

{
  "rateRequestControlParameters": { "returnTransitTimes": true },
  "accountNumber": { "value": "773496030" },
  "freightRequestedShipment": {
    "serviceType": "FEDEX_FREIGHT_PRIORITY",
    "shipper": {
      "address": {
        "city": "Irving",
        "stateOrProvinceCode": "TX",
        "postalCode": "75063",
        "countryCode": "US"
      }
    },
    "recipient": {
      "address": {
        "city": "Beverly",
        "stateOrProvinceCode": "MA",
        "postalCode": "01915",
        "countryCode": "US"
      }
    },
    "shippingChargesPayment": {
      "paymentType": "SENDER",
      "payor": {
        "responsibleParty": {
          "accountNumber": { "value": "00702520" }
        }
      }
    },
    "freightShipmentDetail": {
      "role": "SHIPPER",
      "alternateBillingParty": {
        "accountNumber": { "value": "00702520" },
        "address": {
          "streetLines": ["314 N MIDDLETOWN RD"],
          "city": "MEDIA",
          "stateOrProvinceCode": "PA",
          "postalCode": "19063",
          "countryCode": "US"
        }
      },
      "lineItem": [{
        "freightClass": "CLASS_050",
        "handlingUnits": "1",
        "pieces": 1,
        "subPackagingType": "PALLET",
        "id": "books",
        "weight": { "units": "LB", "value": "1200.00" },
        "dimensions": { "length": 40, "width": 69, "height": 48, "units": "IN" }
      }]
    },
    "rateRequestType": ["ACCOUNT"]
  }
}

Response Example

{
  "transactionId": "abcd123",
  "output": {
    "rateReplyDetails": [
      {
        "serviceType": "FEDEX_FREIGHT_PRIORITY",
        "ratedShipmentDetails": [
          {
            "totalNetFedExCharge": 1200.50,
            "totalBaseCharge": 1100.00
          }
        ],
        "commit": {
          "transitDays": {
            "description": "2 business days"
          }
        }
      }
    ]
  }
}

Parsed Fields

JSON Field	Description	Used For
output.rateReplyDetails[0].ratedShipmentDetails[0].totalNetFedExCharge	Total charge in USD	Display/Store in FTM
output.rateReplyDetails[0].commit.transitDays.description	Transit time text	Extracted as number (e.g., 2)
serviceType	FEDEX_FREIGHT_PRIORITY / ECONOMY	Internal reference

Implementation Notes

Both classes are global virtual for easy extension.
FedEx credentials are read from a static resource (CredFed).

ServiceType differs per integration class:
- FedexEconomyInteg → “FEDEX_FREIGHT_ECONOMY”
- FedexPriorityInteg → “FEDEX_FREIGHT_PRIORITY”
Handles dynamic country-to-code mapping for 200+ countries.
Parses and extracts numeric days from text like “2 business days”.
Displays callout result in Visualforce, optionally updating fields.

Error Handling

Error	Meaning	Suggested Action
401 Unauthorized	Invalid credentials	Verify CLIENT_ID / CLIENT_SECRET
403 Forbidden	FedEx account not authorized for Freight API	Contact FedEx support
400 Bad Request	Missing required address/fields	Check Lane Quote inputs
500 Server Error	FedEx API temporary issue	Retry after short delay

Testing

You can simulate requests using a test Lane Quote ID:

FedexPriorityInteg.makeCallout(‘a0HXXXXXXXXXXXX’);

FedexEconomyInteg.makeCallout(‘a0HXXXXXXXXXXXX’);

Or run directly from the Visualforce button “Get Data”.

Deployment Checklist

✅ Add Remote Site Settings for https://apis.fedex.com
✅ Upload CredFed static resource (JSON credentials)
✅ Ensure Lane Quote page references the correct Visualforce page (FedexPriorityInteg.page, FedexEconomyInteg.page)
✅ Verify user field permissions for:

FEDEX_AccountNumber__c
alternateBillingParty_FedExaccountNumber__c

✅ Ensure Apex class access is granted to target profiles
